DEVIbasic™ 10S

Price range: £97.20 through £608.43

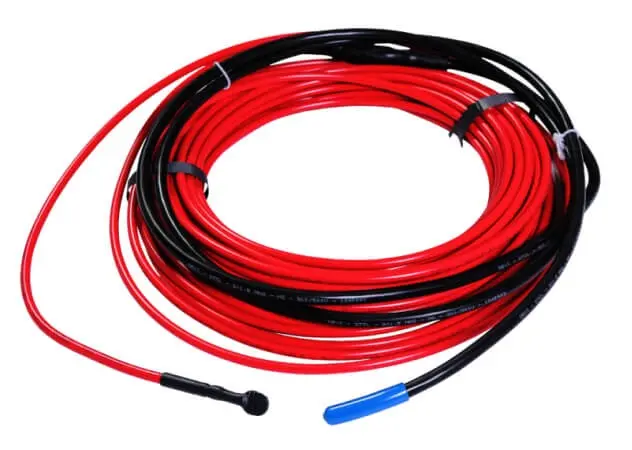

DEVIbasic™ is a high-quality, braided screen, single conductor cable with a non-UV stable outer sheath. Its round profile and robust construction ensures a fast, simple and safe installation in multiple indoor, outdoor and pipe tracing applications.

Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

The two cold leads have clearly visible connections to avoid accidentally installing the heated cable in the wall.

To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our full floor extended DEVIwarranty™.

DEVIbasic™ cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

SKU: N/A Category:

Specification:

Nominal voltage 230 V~
Construction Round, single conductor with screen, 2 x cold lead
Output 10 W/m @ 230 V~
Max. permissible use temperature, powered 75 °C
Max. permissible use temperature, unpowered 90 °C
Cable dimensions Ø 5,5 mm
Deformation strength 600 N
Pulling strength 120 N
Conductor insulation XLPE
Outer sheath PVC
Screen 16 x 0,3 mm Cu (1 mm2)
Cold lead 2 x 3 m DSWA, (4 , 2,5 or 1,5 mm2) with screen
Min. installation temperature -5 °C
Bending Ø, min. 5 cm
IP Class IPX7

Application Downloads:

File Action
DEVImat™ 200T Download PDF
DEVIflex™ 6T Download PDF
DEVIcomfort™ 150T Download PDF
DEVIcomfort™10T Download PDF
Indoor Heating Applications Manual Download PDF
Floor construction and suitable heating cables or mats (Indoor floor heating) Download PDF
Ground Applications Manual Download PDF
Roof Applications Manual Download PDF
Wineyards Download PDF
Outdoor Heating Applications Download PDF
Pipe frost protection Manual Download PDF
DEVIpipeguard™ LSZH Download PDF



Categories

DEVIbasic 10S 21m 230V 200W, DEVIbasic 10S 26m 230V 270W, DEVIbasic 10S 30m 230V 300W, DEVIbasic 10S 37m 230V 375W, DEVIbasic 10S 46m 230V 445W, DEVIbasic 10S 50m 230V 500W, DEVIbasic 10S 58m 230V 570W, DEVIbasic 10S 66m 230V 670W, DEVIbasic 10S 77m 230V 765W, DEVIbasic 10S 90m 230V 905W, DEVIbasic 10S 103m 230V 1025W, DEVIbasic 10S 114m 230V 1130W, DEVIbasic 10S 125m 230V 1245W, DEVIbasic 10S 140m 230V 1400W, DEVIbasic 10S 159m 230V 1584W, DEVIbasic 10S 170m 230V 1710W, DEVIbasic 10S 188m 230V 1876W, DEVIbasic 10S 230m 230V 2300W, DEVIbasic 10S 275m 230V 2750W, DEVIbasic 10S 320m 230V 3255W, DEVIbasic 10S 407m 230V 4069W
