DEVIflex™ 6T

Price range: £91.92 through £396.38

DEVIflex™ is an extremely high-quality, 360° fully screened twin conductor cable with a tough outer sheath (non-UV stable). Its round profile and robust construction ensures a fast, simple and safe installation in multiple indoor floor constructions and pipe tracing applications. Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption. Due to the low specific output (W/m) this product can be successfully used for NZEB (Nearly Zero Energy Building) house applications. The cold lead is an installation cable with solid conductors ensuring fast installation. A clearly visible connection avoids accidentally installing the heated cable in the wall. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our full floor extended DEVIwarranty™. DEVIflex™ cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

SKU: N/A Categories: ,

Specification:

Name Value
Supply voltage [V] AC 230 V
Cable type Twin conductor
Cable output [W/m] 6 W/m
Operating temperature [°C] [max] 80 °C
Non operating temperature [°C] [Max] 90 °C
Cable diameter [mm] 6.9 mm
Deformation strength [N] >1500 N
Pulling strength [N] >500 N
Conductor insulation XLPE
Outer sheath PVC
Outer sheath colour Red
Cable screen Alufoil 100%
Cold lead conductor quantity 3
Cold lead length [m] 2.3 m
Cold lead quantity 1
Cold lead size [mm²] 1.5 mm²
Cold lead type DTCL
Installation temperature [°C] [Min] -5 °C
Bending diameter [mm] [Min] 50 mm
Element IP Class IPX7

Application Downloads:

File Action
DEVImat™ 200T Download PDF
DEVIflex™ 6T Download PDF

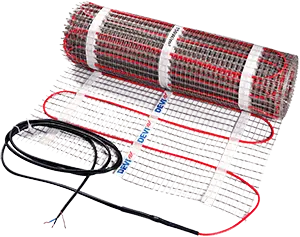

DEVIcomfort™ 150T Download PDF
DEVIcomfort™10T Download PDF
Indoor Heating Applications Manual Download PDF
Floor construction and suitable heating cables or mats (Indoor floor heating) Download PDF
Ground Applications Manual Download PDF
Roof Applications Manual Download PDF
Wineyards Download PDF
Outdoor Heating Applications Download PDF
Pipe frost protection Manual Download PDF
DEVIpipeguard™ LSZH Download PDF



Categories

DEVIflex 6T 30m 230V 180W, DEVIflex 6T 40m 230V 250W, DEVIflex 6T 50m 230V 310W, DEVIflex 6T 60m 230V 345W, DEVIflex 6T 70m 230V 415W, DEVIflex 6T 80m 230V 500W, DEVIflex 6T 90m 230V 540W, DEVIflex 6T 100m 230V 635W, DEVIflex 6T 115m 230V 720W, DEVIflex 6T 129m 230V 770W, DEVIflex 6T 140m 230V 870W, DEVIflex 6T 160m 230V 915W, DEVIflex 6T 180m 230V 1095W, DEVIflex 6T 190m 230V 1160W, DEVIflex 6T 200m 230V 1260W
