DEVIcomfort™ 10T

Price range: £76.68 through £464.16

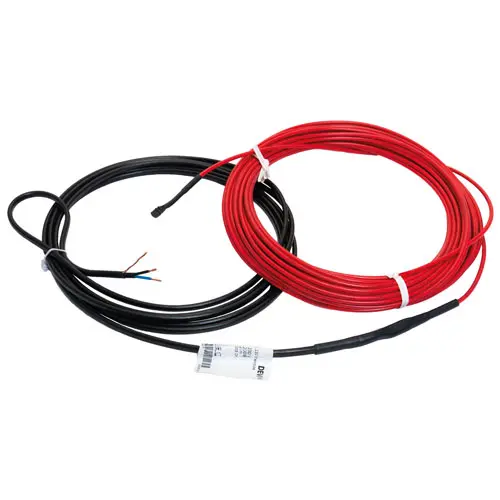

DEVIcomfort™ is an extremely high-quality, 360° fully screened twin conductor cable with a tough red PVC outer sheath (non-UV stable). Its round profile, robust construction and low height ensures a fast, simple and safe installation which is perfect for renovating existing floors.

Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

The cold lead is an installation cable with solid conductors ensuring fast installation. A clearly visible connection avoidsaccidentally installing the heated cable in the wall.

To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our full floor extended DEVIwarranty™.

DEVIcomfort™ cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages

SKU: N/A Category:

Specification:

Nominal voltage 230 V~
Construction Round, twin conductor with 100% screen, one cold lead
Output 10 W/m @ 230 V~
Max. permissible use temperature, On / Off 85 °C / 90 °C
Cable thickness 4 mm
Deformation strength 600N
Pulling strength 120N
Conductor insulation FEP
Outer sheath Lead free PVC
Screen Alu-foil; 0,5 mm2 tinned copper drain wire
Cold lead 4 m DTWB, 2 x 1,0 mm2, with screen
Min. installation temperature -5 °C
Bending Ø, min. 5 cm
IP Class IPX7
Set with double adhesive tape Double adhesive tape 25 mm x 50 m
Set with Flexpipe Flexpipe, inner ø6,7 mm, outer ø10 mm, 2,5 m, Black

Application Downloads:

File Action
DEVImat™ 200T Download PDF
DEVIflex™ 6T Download PDF
DEVIcomfort™ 150T Download PDF
DEVIcomfort™10T Download PDF
Indoor Heating Applications Manual Download PDF
Floor construction and suitable heating cables or mats (Indoor floor heating) Download PDF
Ground Applications Manual Download PDF
Roof Applications Manual Download PDF
Wineyards Download PDF
Outdoor Heating Applications Download PDF
Pipe frost protection Manual Download PDF
DEVIpipeguard™ LSZH Download PDF



Categories

DEVIflex 10T 2m 230V 20W, DEVIflex 10T 4m 230V 40W, DEVIflex 10T 6m 230V 60W, DEVIflex 10T 8m 230V 80W, DEVIflex 10T 10m 230V 100W, DEVIflex 10T 14m 230V 140W, DEVIflex 10T 20m 230V 205W, DEVIflex 10T 25m 230V 240W, DEVIflex 10T 30m 230V 290W, DEVIflex 10T 35m 230V 365W, DEVIflex 10T 40m 230V 390W, DEVIflex 10T 50m 230V 505W, DEVIflex 10T 60m 230V 600W, DEVIflex 10T 70m 230V 695W, DEVIflex 10T 80m 230V 790W, DEVIflex 10T 90m 230V 920W, DEVIflex 10T 100m 230V 990W, DEVIflex 10T 120m 230V 1220W, DEVIflex 10T 140m 230V 1410W, DEVIflex 10T 160m 230V 1575W, DEVIflex 10T 180m 230V 1760W, DEVIflex 10T 200m 230V 1990W, DEVIflex 10T 210m 230V 2050W
